3Ton wheel loader with Weichai engine stage III

Reliable 3-ton loader built for heavy-duty jobs. Equipped with a Weichai National III engine and wet disc brake axle for durability in tough conditions. Features a ROPS/FOPS cabin for operator safety and GPS for fleet tracking.

Online inquiry

Content details

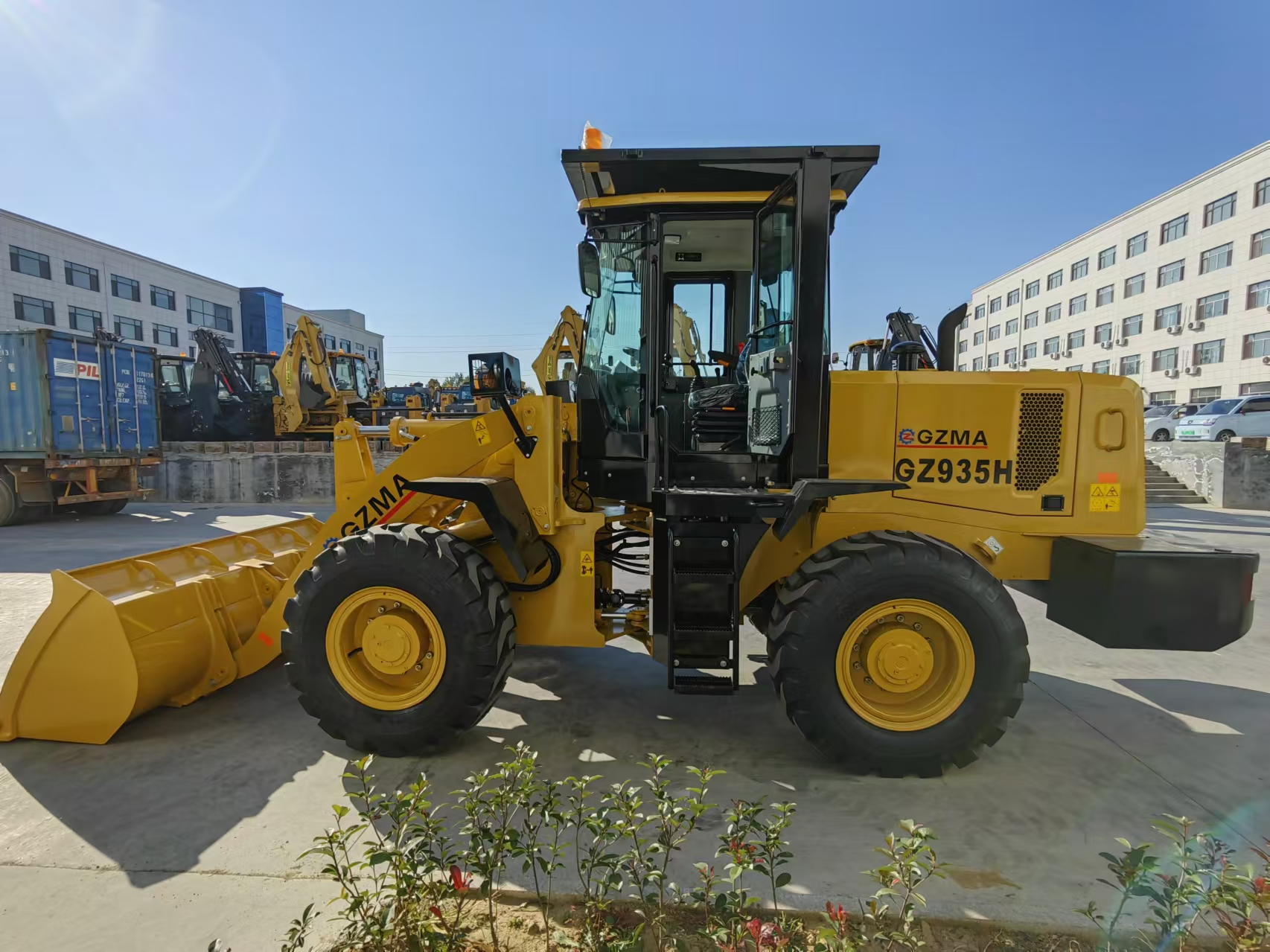

Wheel loader GZ935H specification
Performance	Load lifting capacity	3000kg
	Vehicle operation quality	11500kg
	Rated bucket capacity	1.8m³
	Maximum traction	97KN
	Maximum rising power	127KN
	Max.breakout force	100KN
	Maximum climbing ability	30°
	Maximum unloading height	3100mm
	Maximum unloading distance	1130mm
	Overall dimensions (L×W×H)	7180 × 2350 × 3230mm
	Minimum turning radius	6250mm
Engine	Model	Weichai engine tier III
	Power	130HP
	Type	Turbocharging & Air-to-Air Cooling
	No. of cylinder-bore/stroke	6-108×130mm
	Displacement	5.9L
Transmission system	Torque converter	YJ320B-1
	Gearbox type	Powershift normally engaged straight gear
	Maximum speed	38km/h
Drive axle	Wheelbase	2758mm
	Wheelbase	1800mm
	Minimum ground clearance	400mm
Hydraulic system	System working pressure	16Mpa
	Boom Raise Time	4.83s
	three and	9.15s±0.5s
	Tank capacity	170L
	Automatic Bucket Leveling Function	Yes
Braking system	Service brake	Breaks in bath of oil
Braking system	Parking brake	Manual brake
Tires	Specifications	17.5-25
	Front wheel air pressure	0.4Mpa
	Rear wheel air pressure	0.35Mpa
