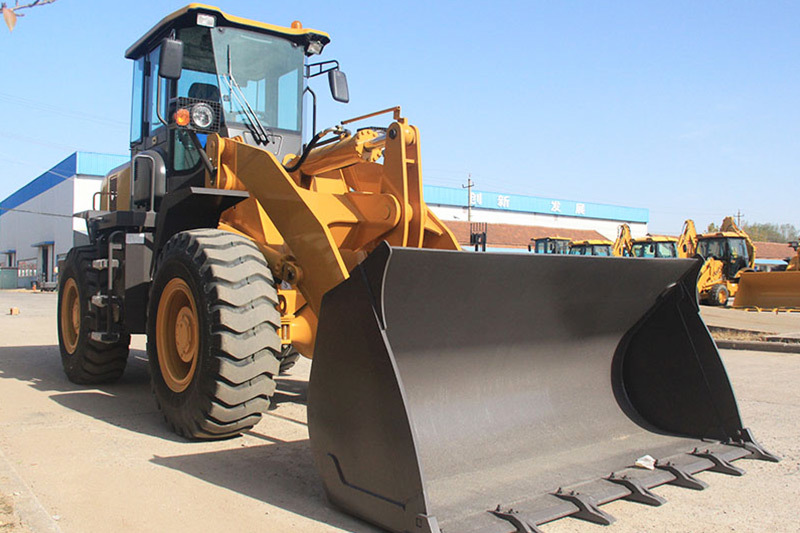

3Ton wheel loader GZ935H with cummins engine QSB5.9-C130-30

The GZ935H offers clear advantages over competing economy models in the same tonnage class, featuring automatic powershift transmission, oil-bath brakes, a direct monitoring system, and a rops/fops air-conditioned cab—all at a highly competitive cost.

Online inquiry

Content details

Wheel loader GZ935H specification
Performance	Load lifting capacity	3000kg
	Vehicle operation quality	11500kg
	Rated bucket capacity	1.8m³
	Tipping load	7000kg
	Maximum traction	97KN
	Maximum rising power	127KN
	Max.breakout force	100KN
	Maximum climbing ability	30°
	Maximum unloading height	3100mm
	Maximum unloading distance	1130mm
	Overall dimensions (L×W×H)	7180 × 2350 × 3230mm
	Minimum turning radius	6250mm
Engine	Model	Cummins QSB5.9-C130-30
	Power	130HP
	Type	Turbocharging & Air-to-Air Cooling
	No. of cylinder-bore/stroke	6—102×120mm
	Displacement	5.9L
Drive system	transmission	Hangzhou Advance YD13 electronically transmission
	Gearbox type	Automatic powershift transmission
	Number of gears	4 forward , 4 reverse
	Maximum speed	38km/h
Drive axle	Wheelbase	2758mm
	Wheelbase	1800mm
	Minimum ground clearance	400mm
Hydraulic system	System working pressure	16Mpa
	Boom Raise Time	4.83s
	three and	9.15s±0.5s
	Tank capacity	170L
	Automatic Bucket Leveling Function	Yes
Braking system	Service brake	Oil Bath Brake
Braking system	Parking brake	Spring-applied parking brake/Manual break
Tires	Specifications	17.5-25
	Front wheel air pressure	0.4Mpa
	Rear wheel air pressure	0.35Mpa
