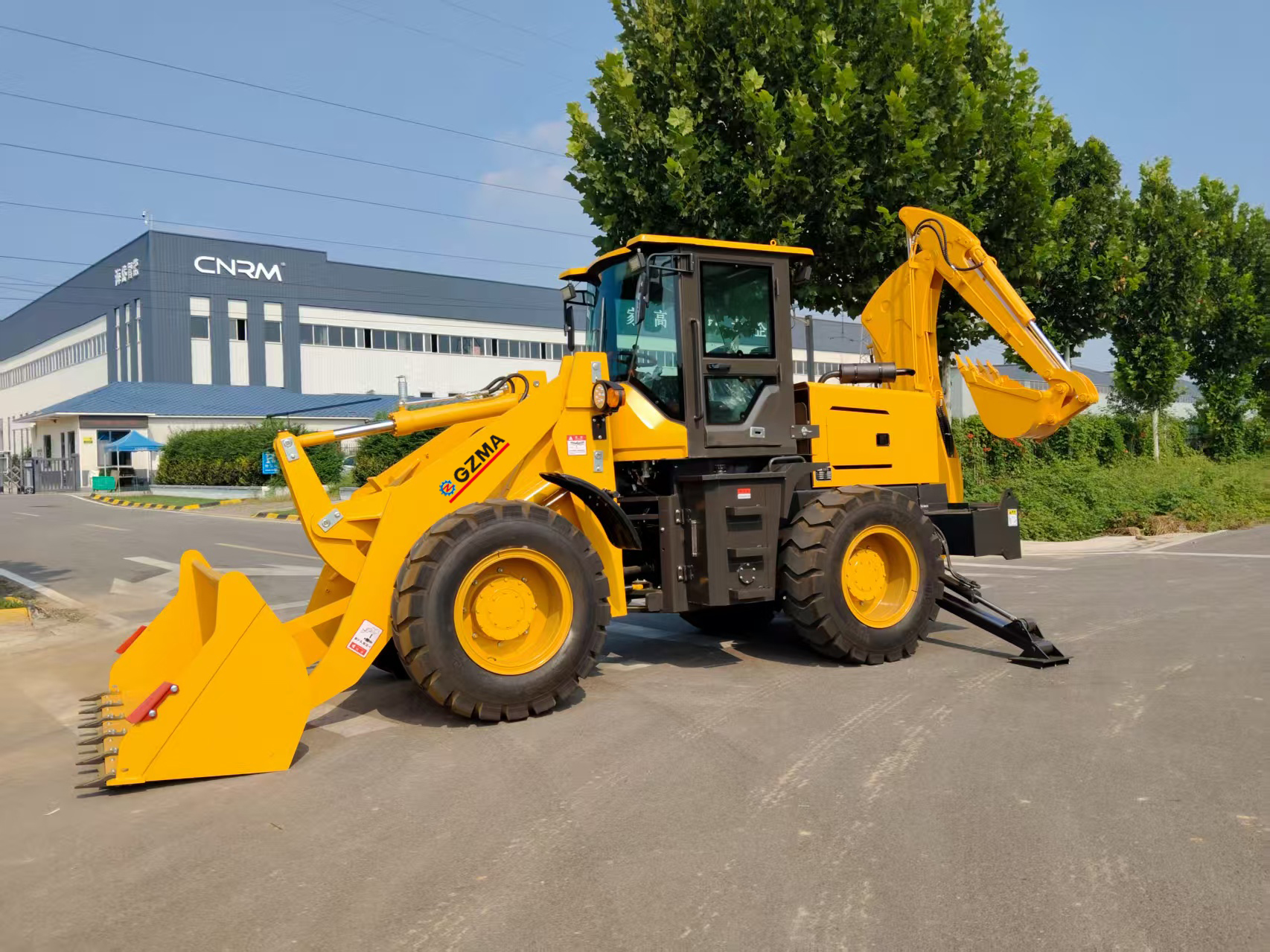

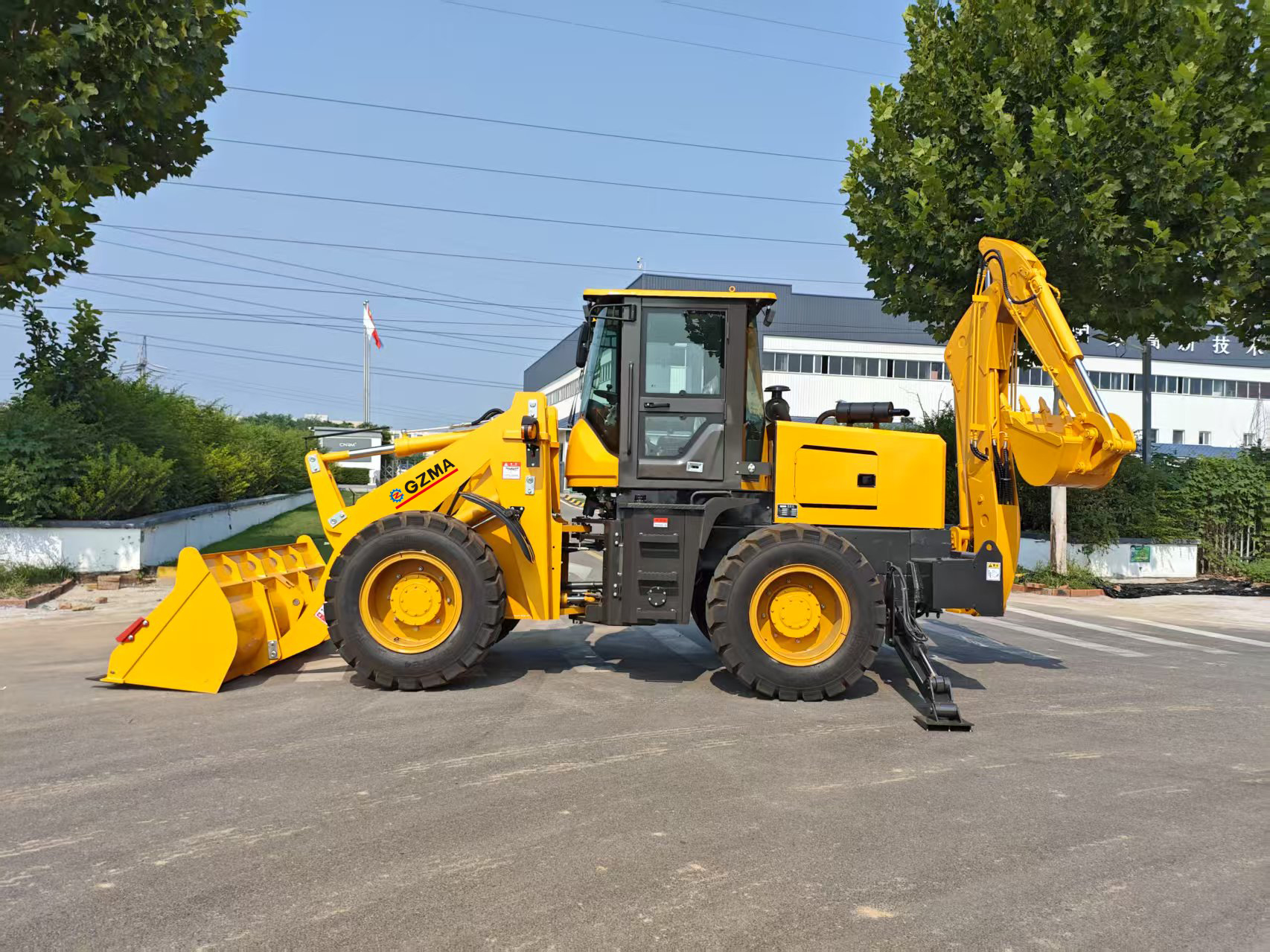

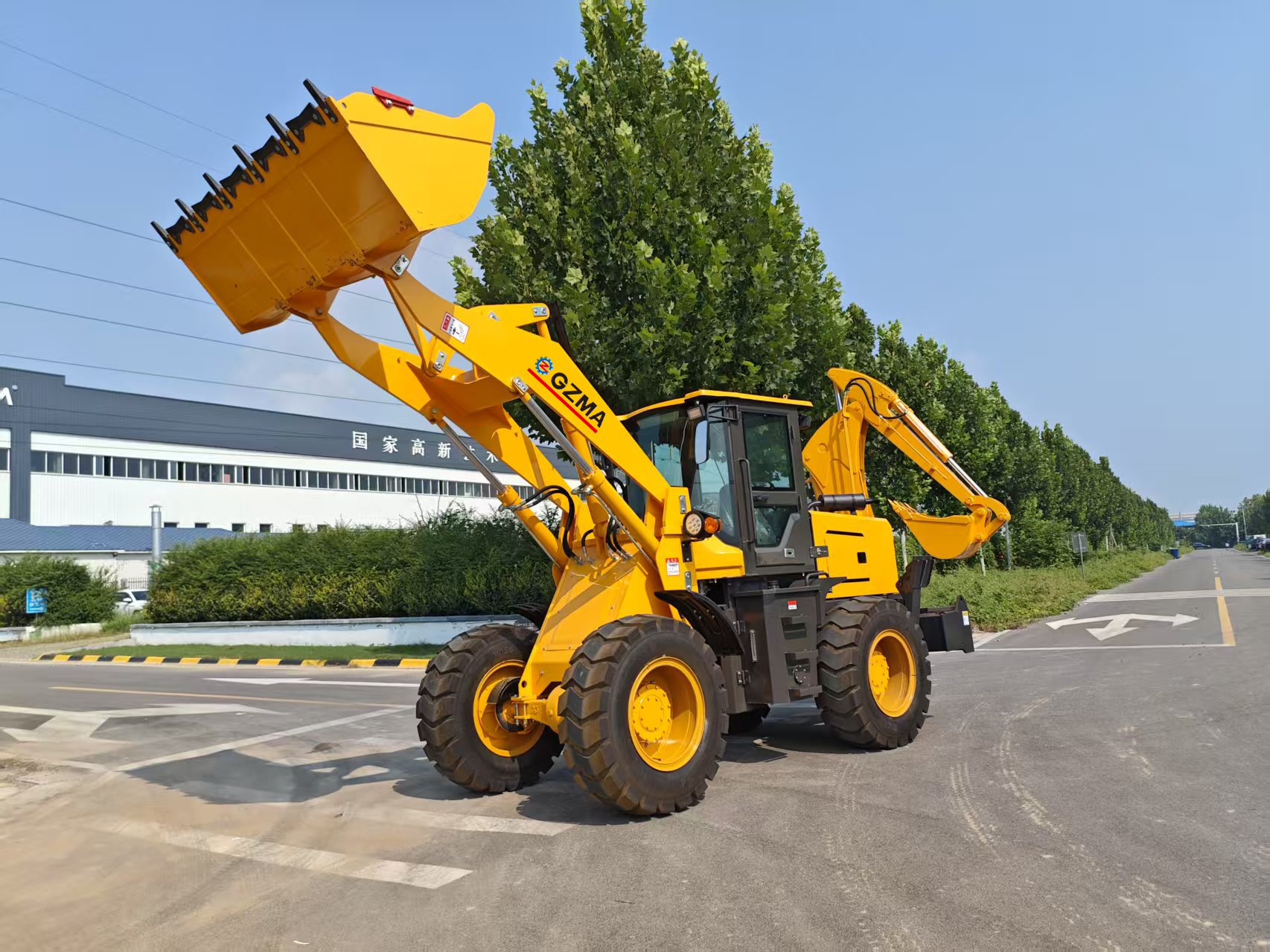

| GZ30-25 backhoe loader |
| Dimensions | 6500*2040*2800mm | Machine brand | GZMA |
| Wheel base | 2675mm | Operation weight | 6500kg |
| Tumbler Center Distance | 1630mm | Engine model | Yunei YN48GBZ |
| Minimum ground clearance | 280mm | Engine type | Torque Converter,Four Stroke |
| Pressure of Hydraulic System | 18MPa | Rated power | 92kw |
| Max.Speed | 28km/h | Rated speed | 2400r/min |
| Maximum climbing capacity | 25° | Cylinder-Inner dia. | 4-108 |
| Minimum turning radius | 4500mm | Gearbox | Fixed Shaft Power Transmission |
| Backhoe max. Digging Depth | 2600mm | Gears | Two Gears Ahead, Two Gears Astern |
| Backhoe dumping Height | 2300mm | Torque Converter | ZL29A |
| Backhoe maximum digging Radius | 4600mm | Steering System | Articulated full hydraulic steering |
| Backhoe width | 700mm | Steering Angle | 33° |
| Backhoe capacity | 0.25m³ | Axle | Wheel reduction |
| Backhoe maximum digging height | 4300mm | Tyre model | 16/70-20 |
| Max.excavating force | 28KN | Front wheel pressure | 250KPa |
| Swing Angle of backhoe | 180° | Pressure of Back Wheel | 250KPa |
| Bucket Dumping Height | 3500mm | Service Brake | Air Over Oil Caliper Brake |
| Bucket Dumping distance | 900mm | Emergency Brake | Manual Operation |
| Bucket width | 2200mm | Fuel tank | 50L |
| Bucket capacity | 1.2m³ | Hydraulic tank | 50L |
| Bucket max lifting height | 4300mm | Drive type | 4x4 |
| Bucket breakout Force | 42KN | Shifting method | Hydraulic shifting |
| Bucket action time | 12S | Braking distance | 6200mm |
