| Main Technical Parameters | ||||
| 1 | 型号 | MODEL | unit | GZ210BR |
| 2 | 品牌 | BRAND | / | GZMA |
| 3 | 工作质量 | Operating mass | Kg | 10000 |
| 4 | 静线载荷 | Static linear load | N/cm | 326 |
| 5 | 振幅（高/低) | Vibration amplitude | mm | 1.7/0.8 |
| 6 | 振动频率（高/低） | Vibration frequency | Hz | 28/35 |
| 7 | 激振力(高/低） | Centrifugal force | kN | 260/160 |
| 8 | 最高行走速度 | Max.Travel speed | km/h | 12 |
| 9 | 爬坡能力 | Grade ability | % | 35 |
| 10 | 转弯半径 | Turning radius | mm | 7000 |
| 11 | 外观尺寸 | Overall dimension | mm | 5650x2280x3000 |
| 12 | 振动轮宽度 | Vibration drum width | mm | 2100 |
| 13 | 轴距 | Wheelbase | mm | 3060 |
| 14 | 最小离地间隙 | Min. Ground clearance | mm | 360 |
| 15 | 柴油机功率 | Diesel power | kw | 110 |
| 16 | 柴油机型号 | Diesel model | / | CUMMINS 6BT5.9 |

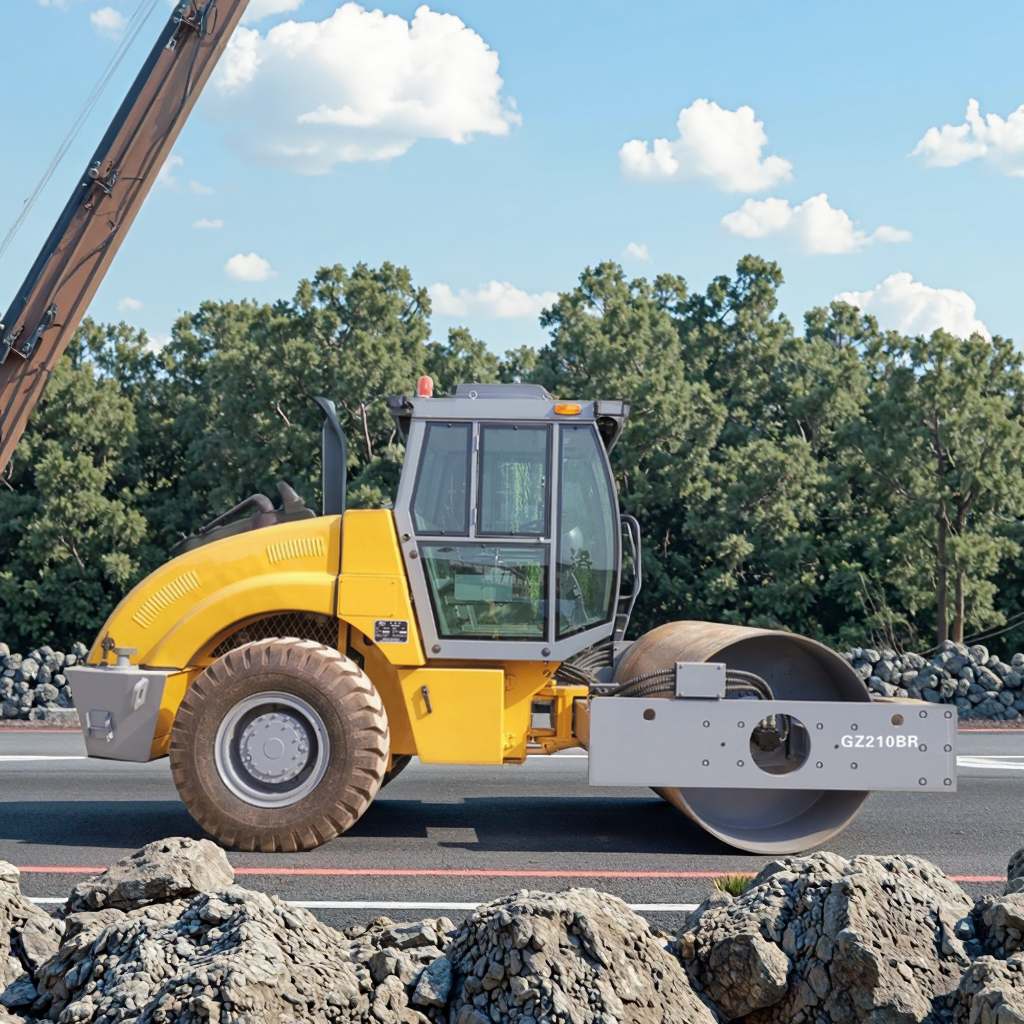

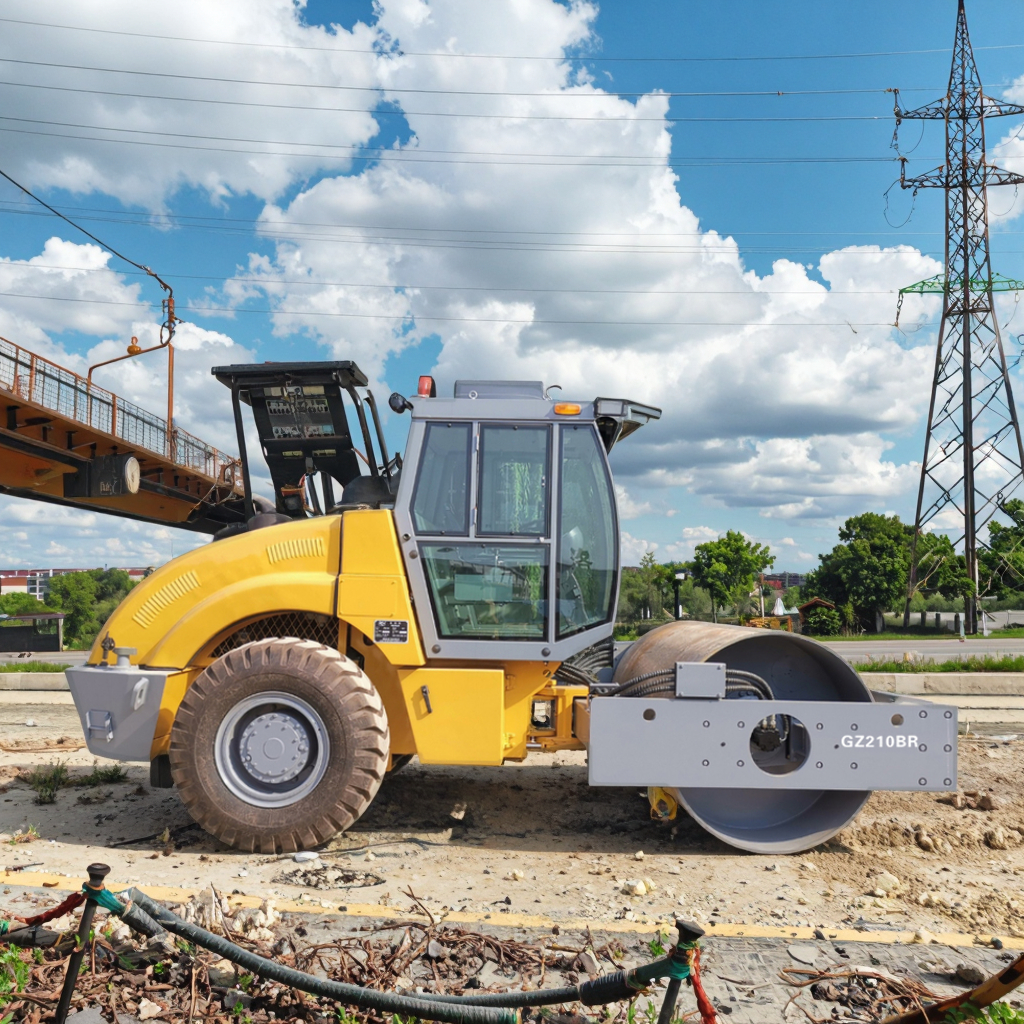

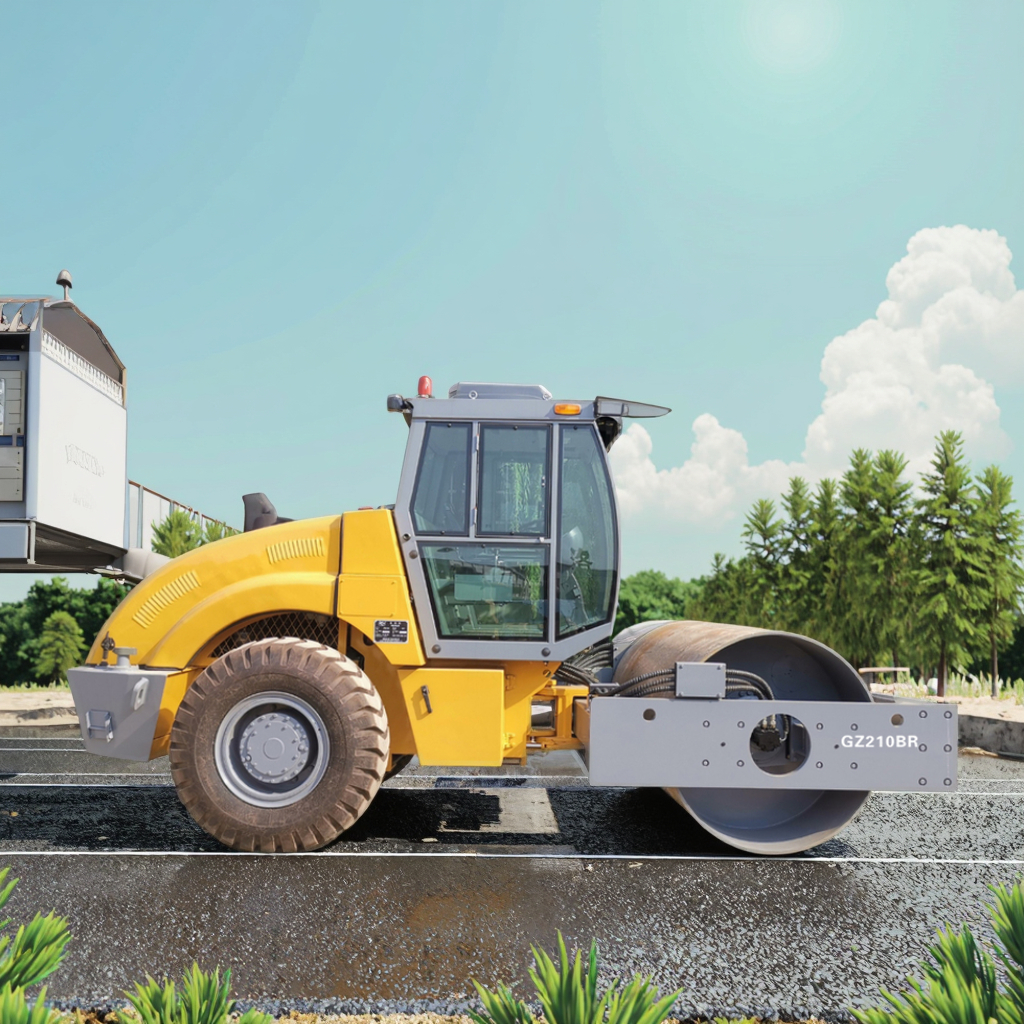

Product Overview: GZ Series Heavy-Duty Vibratory Roller
Core Concept: A high-mass, high-force roller designed for maximum efficiency in large-scale mechanized construction (expressways, ports, mining).
✔️ Key Specifications:
Engine: CUMMINS B-series turbocharged diesel. Reliable at high altitudes (4000m+).
Operation: Full hydraulic, two-wheel drive. Double frequency & amplitude.

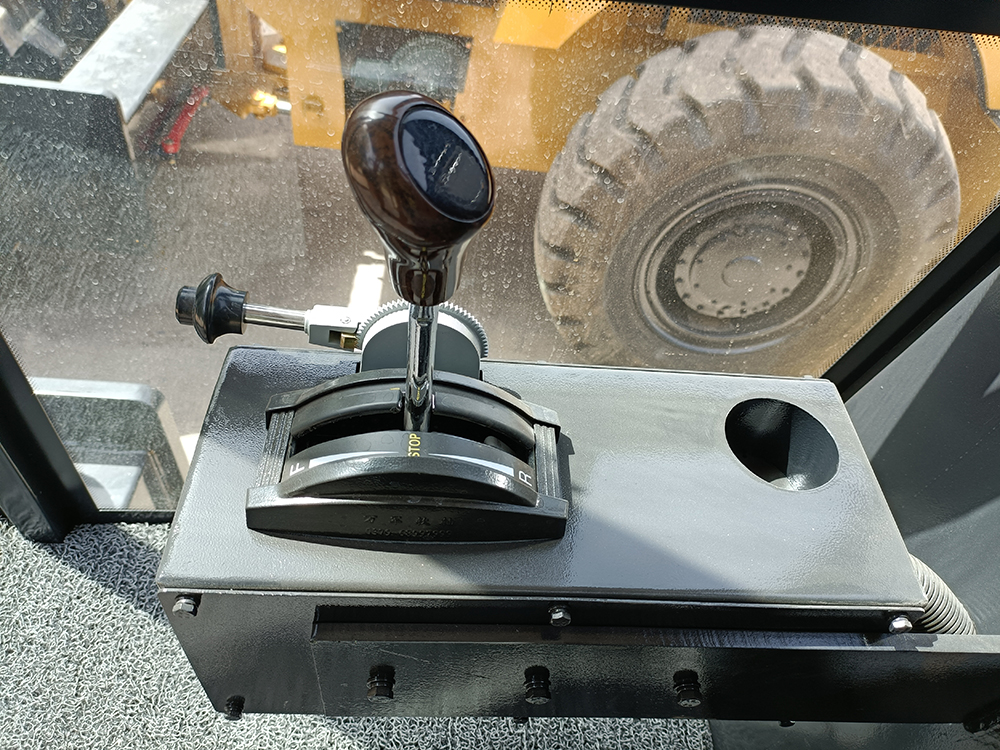

Control: Articulated steering, two stepless speeds.
Safety: Oil-cutoff braking system.
Design: Streamlined body, circular windshield.

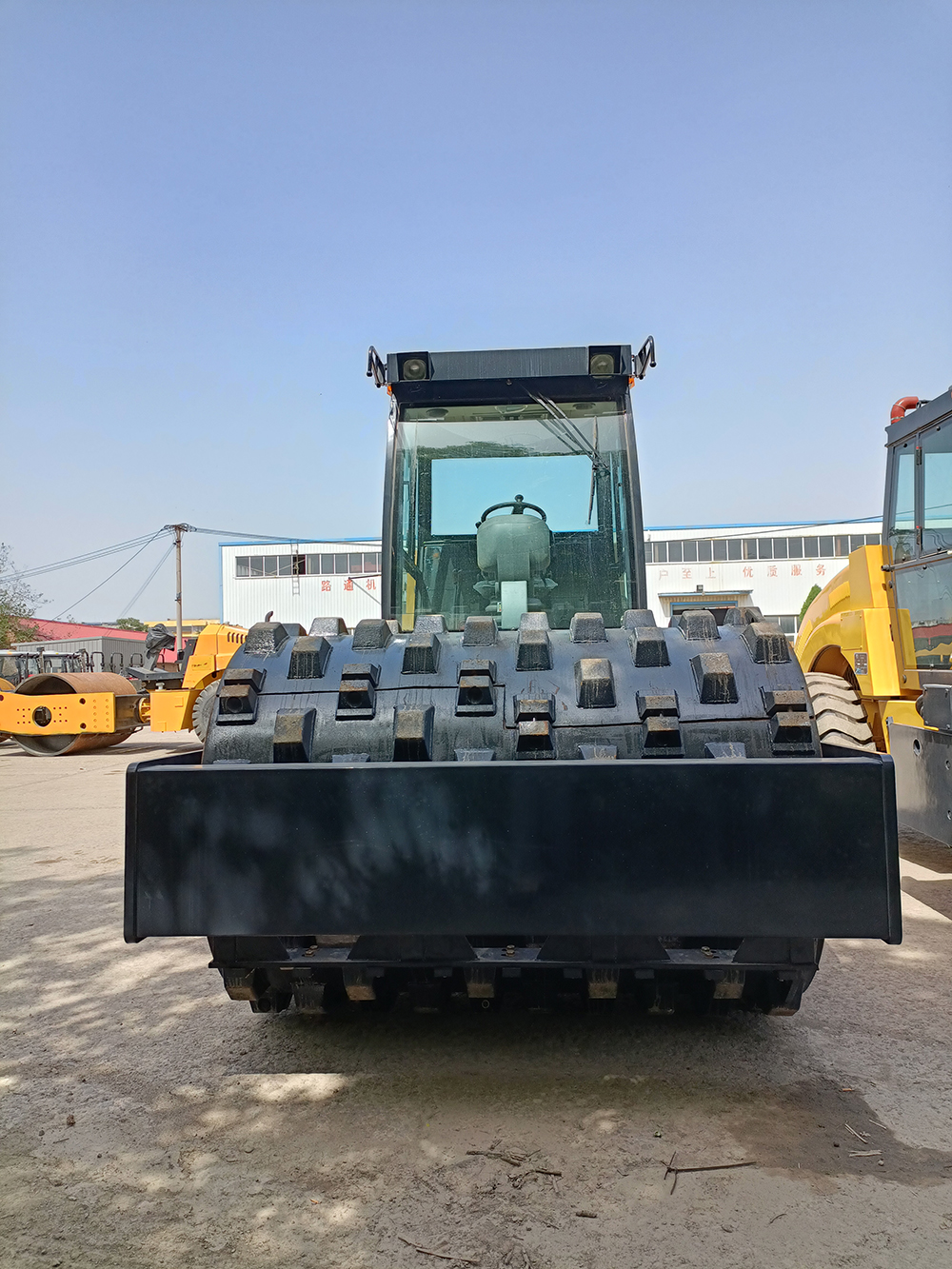

Option: Removable padfoot drum.
✔️ Application & Value:
Ideal For: Gravel, macadam, sandy soil (non-cohesive); also effective on cohesive materials.
GPS Option (Smart Investment):
Quality Proof: Generate verifiable compaction reports.
Cost Control: Reduce idle time, enable predictive maintenance.
Asset Security: Real-time tracking and geo-fencing.
